Tutorial

Maintain item unit conversions and barcodes

Open the individual Item → UOM. Keep the stock unit at conversion factor 1. Add the alternate UOM and enter the number of stock units represented by one alternate unit. Choose the exact Link result and commit the numeric field before saving.

Supply ChainUpdated 13 October 2026Configuration-aware guidance

Before you start

Use your authorized ERP account and the correct company. These screenshots use fictional staging records. Replace the example quantities, dates, warehouses and values with your approved business information. Submission affects the relevant workflow or stock ledger; review the draft first.

ERP links open in a new tab. Sign in with your own account; record visibility, actions and approval authority follow your assigned permissions. Screens can differ by company and configuration.

Addresses used in this tutorial

ERP_URL is your organization’s ERP address. ACADEMY_URL is the Academy base address: staging uses https://erpstaging.nexcommand.ai/academy; production uses https://academy.nexcommand.ai. Saved record IDs and temporary draft IDs differ between installations. Course IDs and element IDs in the example are not portable to another installation.

Step-by-step instructions

Step 1 of 5

Set the packaging conversion

Open the individual Item → UOM. Keep the stock unit at conversion factor 1. Add the alternate UOM and enter the number of stock units represented by one alternate unit. Choose the exact Link result and commit the numeric field before saving.

Example / selection
NC-DOCS-COVER-M; one Box = twelve Nos
Expected result
The conversion describes the actual packaging quantity.
Expected URL expression{ERP_URL}/desk/item/{RECORD_ID}

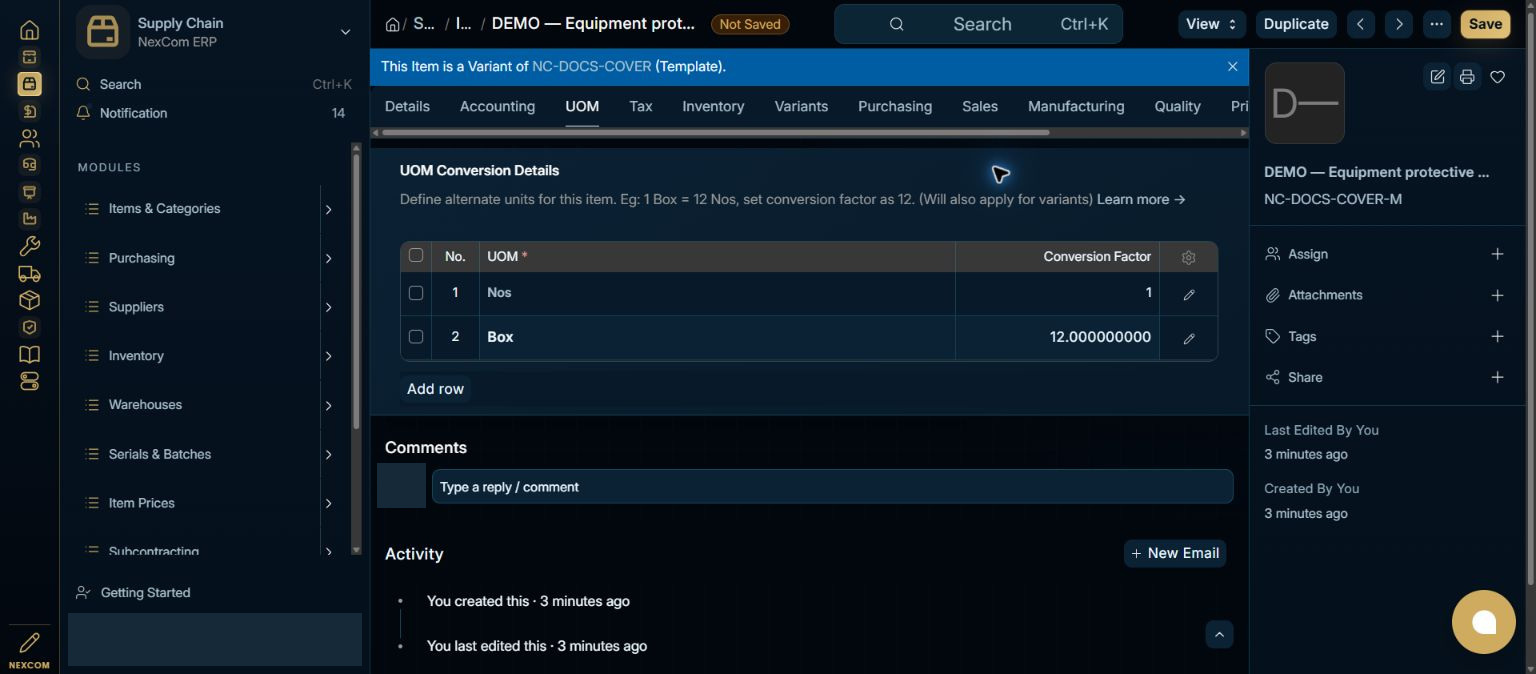

Set the packaging conversion — redacted NexCom tutorial image
Actual staging capture. Personal identity masked; the captured application viewport is retained. Scroll position follows the action shown.
Step 2 of 5

Save and verify the conversion

Save, then review UOM again. Confirm both the stock unit and alternate factor. Avoid changing a conversion used by existing stock transactions without a controlled review. Transaction quantity in Box must convert correctly to stock quantity in Nos.

Example / selection
Nos factor 1; Box factor 12
Expected result
The saved conversion persists.
Expected URL expression{ERP_URL}/desk/item/{RECORD_ID}

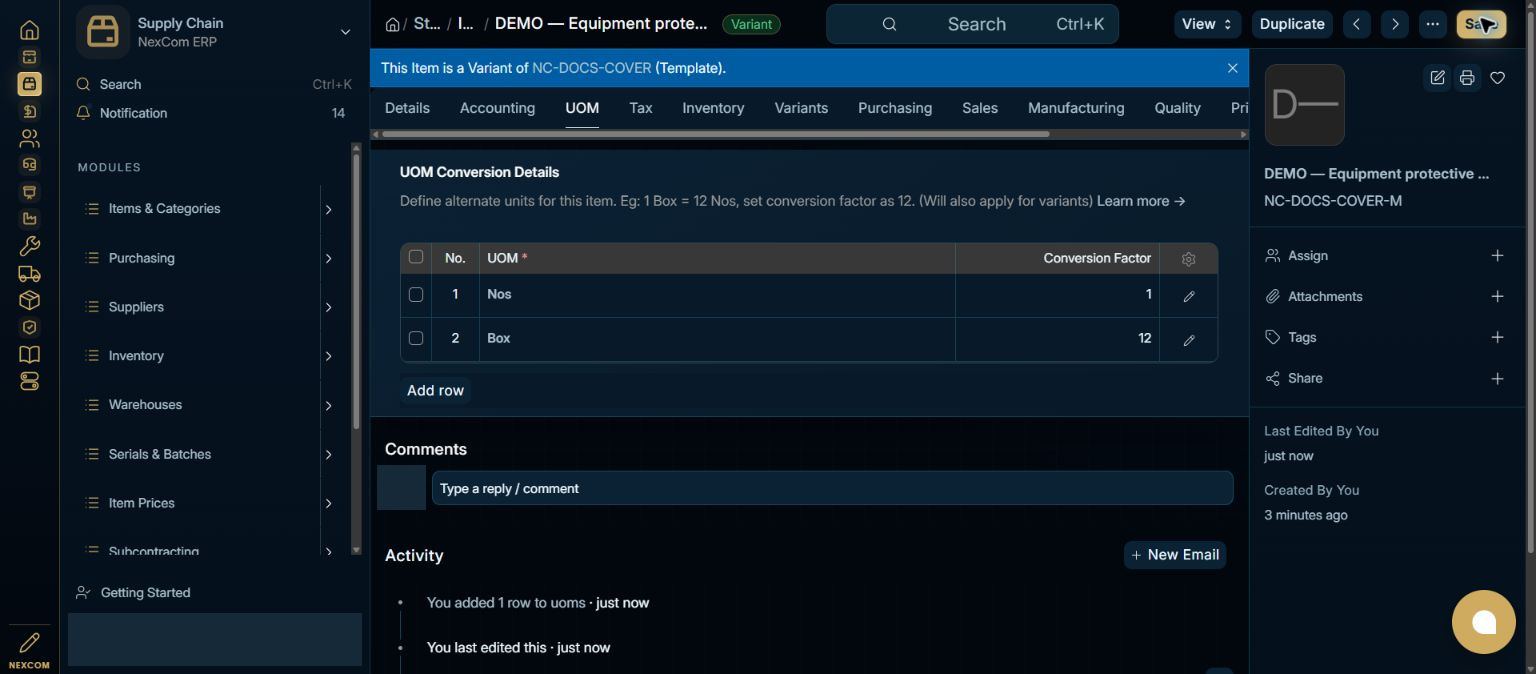

Save and verify the conversion — redacted NexCom tutorial image
Actual staging capture. Personal identity masked; the captured application viewport is retained. Scroll position follows the action shown.
Step 3 of 5

Enter the item barcode

Open Inventory → Barcodes. Add the exact barcode, supported Barcode Type and associated UOM. A barcode on an individual variant identifies that variant; do not use one code for unrelated items.

Example / selection
NC-DOCS-COVER-M-001; CODE-39; Nos
Expected result
The row identifies the intended variant and scanning unit.
Expected URL expression{ERP_URL}/desk/item/{RECORD_ID}

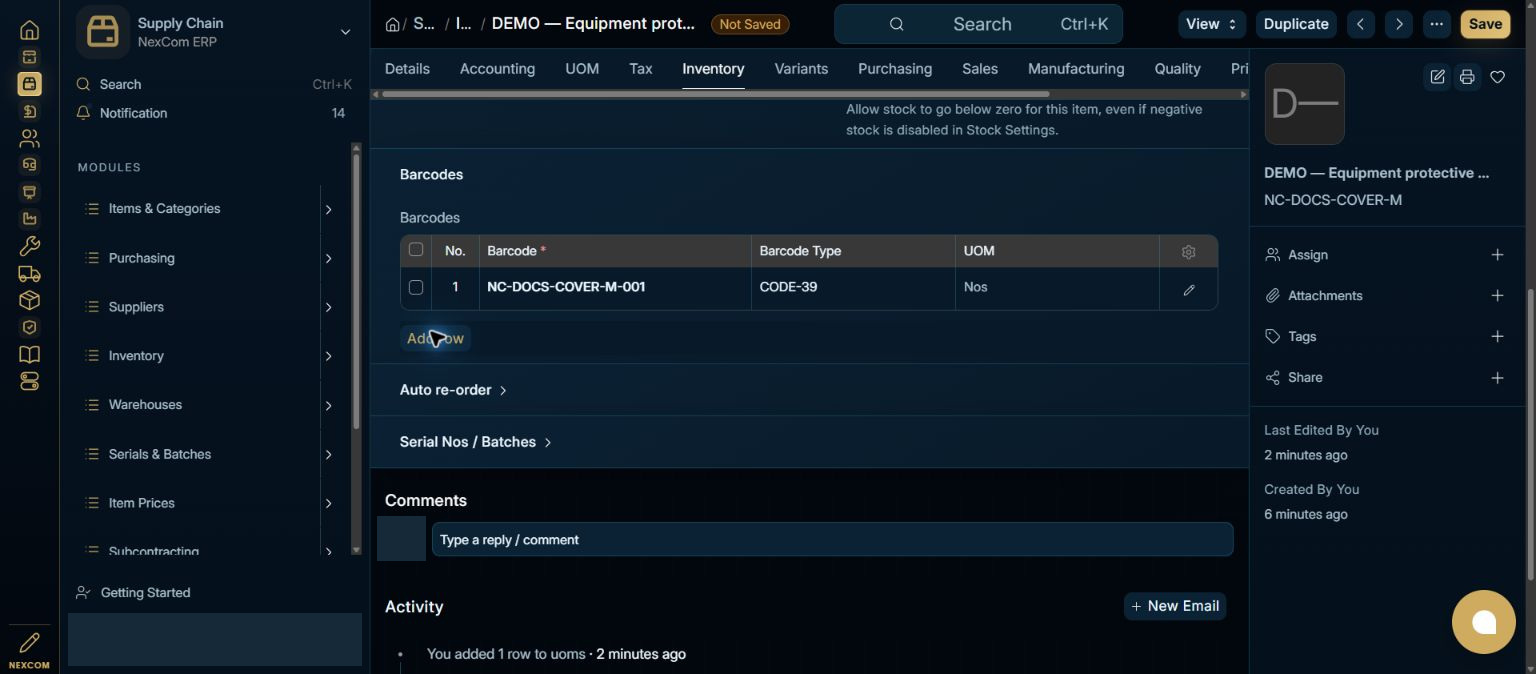

Enter the item barcode — redacted NexCom tutorial image
Actual staging capture. Personal identity masked; the captured application viewport is retained. Scroll position follows the action shown.
Step 4 of 5

Save the barcode

Save and reopen Inventory. Review the barcode row and remove accidental empty rows before saving. A barcode master does not itself print labels or post inventory.

Example / selection
Saved CODE-39 barcode
Expected result
The code is available to the scanner lookup.
Expected URL expression{ERP_URL}/desk/item/{RECORD_ID}

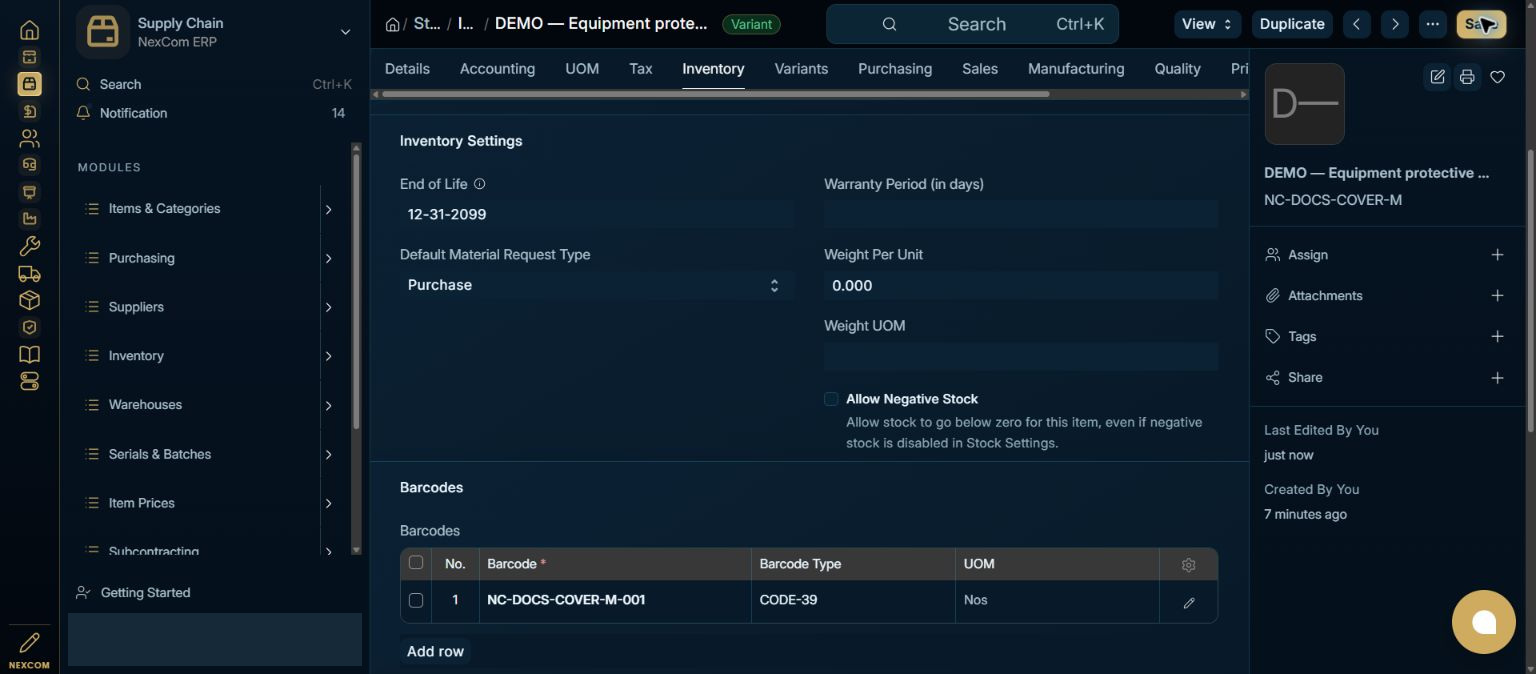

Save the barcode — redacted NexCom tutorial image
Actual staging capture. Personal identity masked; the captured application viewport is retained. Scroll position follows the action shown.
Step 5 of 5

Verify the scanner match

Open Supply Chain → Barcode & QR Scanning → NexCom Scan. Enter the configured code and choose Find record. Confirm the returned item code and description before using it in a stock workflow.

Example / selection
Resolved Item NC-DOCS-COVER-M
Expected result
The barcode resolves to the correct individual variant.
Expected URL expression{ERP_URL}/desk/nexcom-scan-console

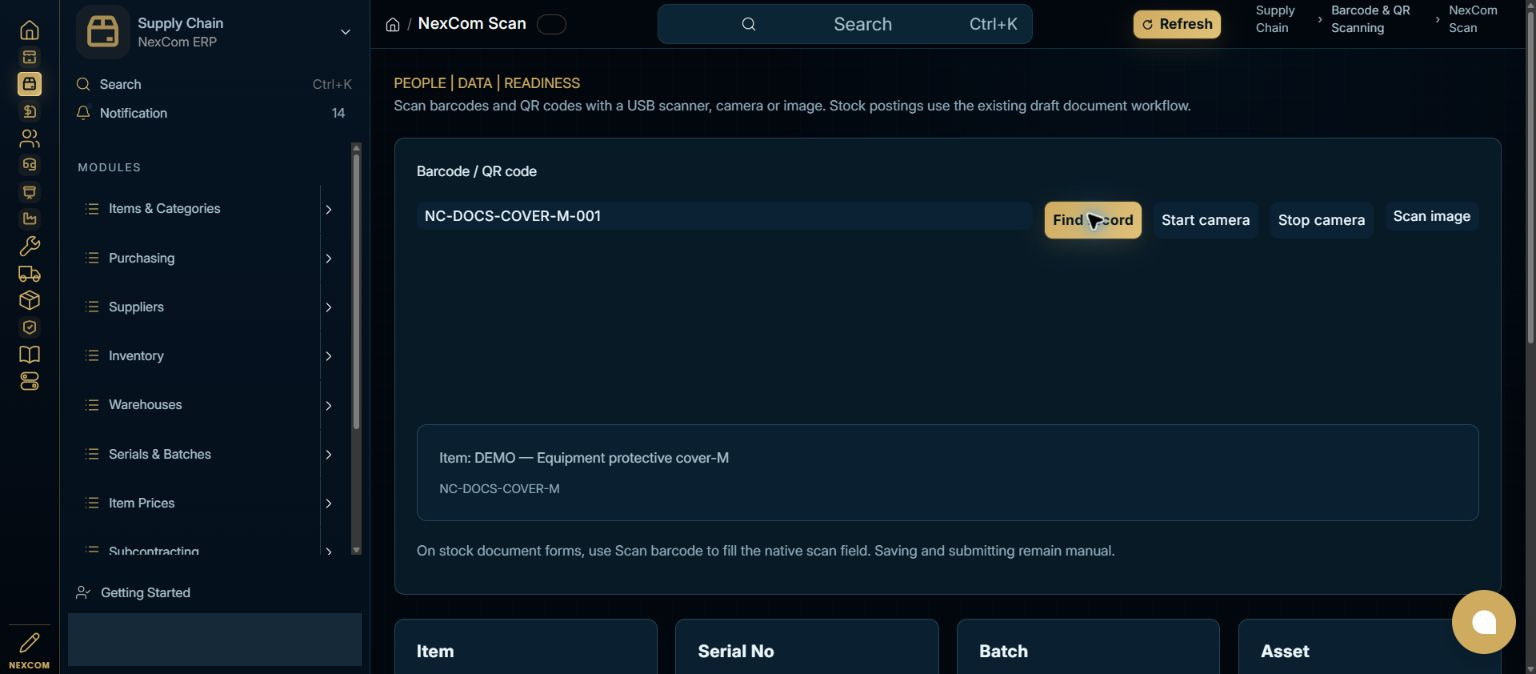

Verify the scanner match — redacted NexCom tutorial image
Actual staging capture. Personal identity masked; the captured application viewport is retained. Scroll position follows the action shown.

Verified result

The variant saved Nos factor 1 and Box factor 12. Its CODE-39 barcode and Nos UOM were saved, and a typed-code lookup resolved to NC-DOCS-COVER-M. No camera, printed-label scanner hardware, alternate-UOM stock posting or inventory movement was tested by this maintenance walkthrough.

Troubleshooting

Wait for Link search results and choose the exact record. Leave each edited field to commit its value. Check required dates in every item row. A saved draft and a submitted record are different states. If validation fails, correct the highlighted field and verify the saved result before continuing.
